Scaling

Overview​

This test metric scales the x and y data from a signal by a specified scale factor

Required Inputs​

  • Time History Signal
  • Scale factor for x axis
  • Scale factor for y axis

Calculation​

  1. Multiplies each x value in the signal by a desired scaling factor
  2. Multiplies each y value in the singal by a desired scaling factor

Scaling Example​

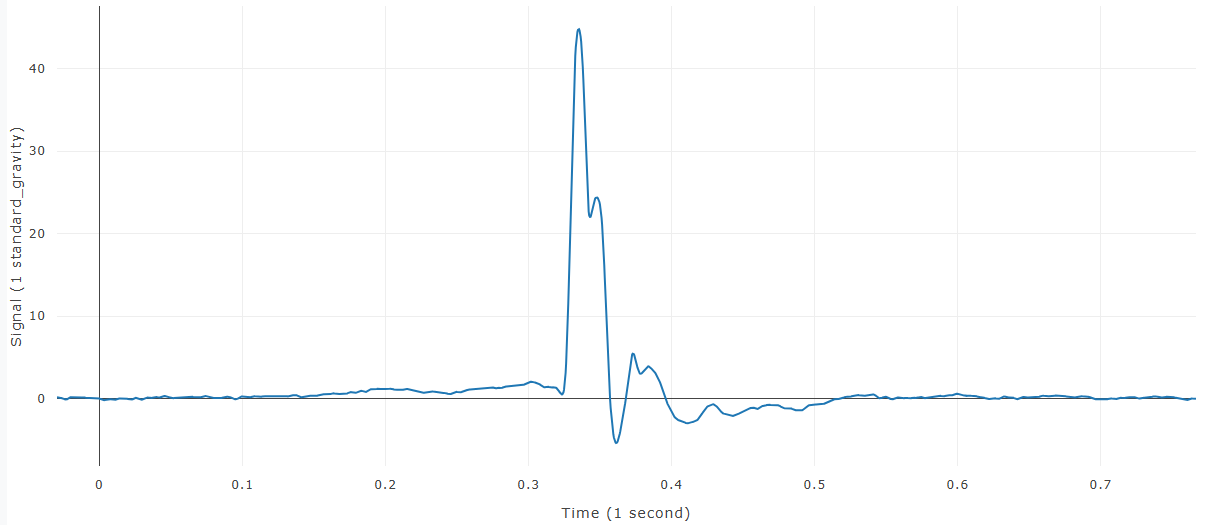

Before scaling

Before signal is scaled

After scaling

After signal is x-axis is scaled to 3 and y-axis is scaled to 0.3 (see axes)
